Yamaha DBR15- 15" 2-Way Powered Loudspeaker
HomeStore

Yamaha DBR15- 15" 2-Way Powered Loudspeaker

Yamaha DBR15- 15" 2-Way Powered Loudspeaker

$204.81

Original: $585.16

-65%
Yamaha DBR15- 15" 2-Way Powered Loudspeaker—

$585.16

$204.81

The Story

Key Features
  • 1000W Dynamic Output
  • Class D Amplifier
  • 15" Woofer & 1.4" HF Driver
  • On-Board 2-Channel Mixer
  • Floor, FOH, Rigged Applications
  • Designed for Portability
  • Built-In Rigging Points



Overview

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR15- 15" 2-Way Powered Loudspeaker from Yamaha is capable of up to 1000W of dynamic output via its Class D amplifier. The loudspeaker features a 15" woofer and a 1.25" compression driver and provides a maximum output of 132 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR15 is portable and can be easily transported.


Key Specs

PA Speaker
Configuration
Active 2-Way
Enclosure Type
Bass-Reflex Loudspeaker
Total Power Capacity
1000 W Peak
465 W RMS
Amplifier Power Rating
LF:
800 W Peak
400 W RMS
HF:
200 W Peak
65 W RMS
Drivers
HF Driver
1 x 1.4" / 35.6 mm Compression Driver
LF Driver
1x 15" / 387 mm Woofer
LF Voice Coil
2.5" / 6.35 cm
Magnet
HF:
Ferrite
LF:
Ferrite
Performance
Frequency Range
50 Hz to 20 kHz -10 dB
Maximum SPL
132 dB SPL
Coverage Angle
90° H x 60° V
Connectivity
Audio I/O
2x Combo XLR-1/4" TRS Input
1x Stereo RCA Unbalanced Input
1x XLR 3-Pin Output
Signal Processing
Crossover
2.1 kHz
Power
AC Input Power
100 to 120 VAC, 50 / 60 Hz
Power Consumption
74 W (1/8 Power)
18 W (Idle)
Physical
Mounting
1 x 1.38" / 35 mm Pole Socket (Bottom)
2 x M8 (Bottom)
1 x M8 (Rear)
1 x Pole Socket
Handles
2x Side
Cooling
Fan (Variable Speed)
Construction Material
Plastic
Dimensions
17.9 x 27.6 x 14.9" / 455 x 700 x 378 mm
Weight
42.6 lb / 19.3 kg
Packaging Info
Package Weight
53.5 lb
Box Dimensions (LxWxH)
31 x 21 x 19"



What's in the Box:

  • Yamaha DBR15- 15" 2-Way Powered Loudspeaker
  • Limited 1-Year Manufacturer Warranty
Yamaha DBR15- 15" 2-Way Powered Loudspeaker - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Yamaha DBR15- 15" 2-Way Powered Loudspeaker - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

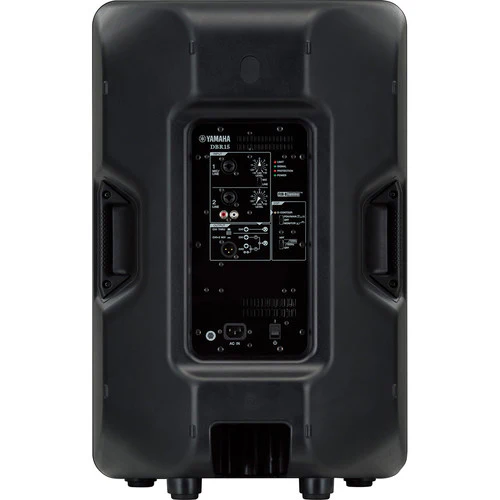

Yamaha DBR15- 15" 2-Way Powered Loudspeaker - Image 4
