Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor
HomeStore

Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor

Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor

$803.00
Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor—
$803.00

The Story

Key Features

  • 1920 x 1080 Touchscreen Display
  • 10-Bit Exterior Viewable Monitor
  • 4K HDMI 2.0 Input/Output
  • 8K30 ProRes RAW with Select Cameras
  • AtomOS 11 Operating System
  • 1000 cd/m² Brightness
  • Supports Multiple Log Formats
  • ProRes and DNxHR/HD Recording
  • Record to Master Caddy II/III Hard Drive
  • L-Series Battery Slot, USB-C Port



Overview

With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor is a 5.2" on-camera monitor and recorder ideal for use on your next set. This monitor supports DCI 4K HDMI footage and can even record ProRes RAW up to 8K with compatible cameras. The Ninja Ultra retains the same form factor as its predecessors to be compatible with most Atomos monitor accessories for easy integration with your preexisting equipment.

Key Specs
Display Size
5.2" / 13.2 cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
Yes, Hybrid Log Gamma
Video I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
Media/Memory Card Slot
No
Video Format
HDMI (8/10/16-Bit 4:2:2)
8K Raw: 30
6K Raw: 60
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Phantom Power
No
Built-In Battery
No
Battery Type
1x L-Series
Power Consumption
30 W
Mounting
1x ARRI Anti-Twist 1/4"-20
2x 3/8"-16 Female
Display
Panel Type
IPS-Type LCD
Display Size
5.2" / 13.2 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
1000 nits / cd/m2
Color Support
1.07 Billion Colors (8-Bit+FRC)
HDR Support
Yes, Hybrid Log Gamma
Pixels Per Inch (ppi)
427 ppi
LUT Support
HDR
Image Controls
Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
HDCP Support
No
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Input
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel Input
Other I/O
1x USB-C
Media/Memory Card Slot
No
File System Support
exFAT
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
Yes: iOS Only
App Name: AtomRemote
Format Support
Video Format
HDMI (8/10/16-Bit 4:2:2)
8K Raw: 30
6K Raw: 60
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Gamma Curve
ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Timecode Support
Yes
Recording
Pulldown Conversion
2:2, 3:2
Camera Trigger
HDMI
Pre-Roll Record
Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats
x
DNxHD
DNxHR
ProRes
Maximum Audio Tracks
8
Reference Input
No
Phantom Power
No
Power
Input Power
6.2 to 16.8 VDC
Built-In Battery
No
Battery Type
1x L-Series
Power Consumption
30 W
Mounting
Mounting
1x ARRI Anti-Twist 1/4"-20
2x 3/8"-16 Female
Environmental
Operating Temperature
104°F / 40°C
General
Material of Construction
Aluminum, Plastic
Dimensions
5.9 x 3.6 x 1.2" / 151 x 91.5 x 31 mm
Weight
12.7 oz / 360 g
Packaging Info
Package Weight
1.715 lb
Box Dimensions (LxWxH)
7.5 x 6.1 x 3.3"

What's in the Box:
  • Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor
  • Battery Eliminator
  • USB-C PD to 2.1mm DC Power Cable
  • Limited 1-Year Manufacturer Warranty
  • Registration Extension: 2-Year
Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

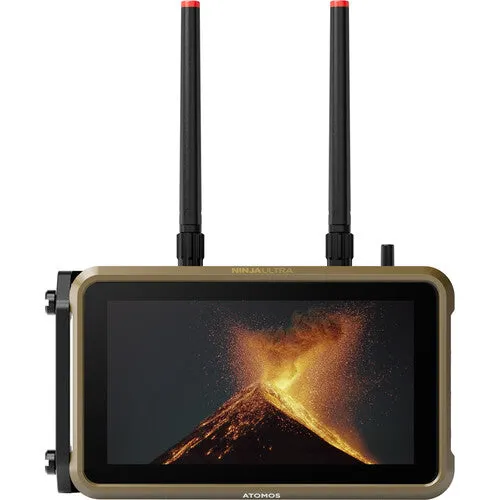

Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

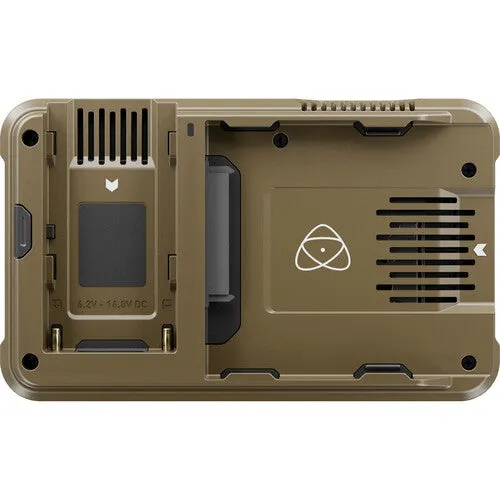

Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Key Features

  • 1920 x 1080 Touchscreen Display
  • 10-Bit Exterior Viewable Monitor
  • 4K HDMI 2.0 Input/Output
  • 8K30 ProRes RAW with Select Cameras
  • AtomOS 11 Operating System
  • 1000 cd/m² Brightness
  • Supports Multiple Log Formats
  • ProRes and DNxHR/HD Recording
  • Record to Master Caddy II/III Hard Drive
  • L-Series Battery Slot, USB-C Port



Overview

With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor is a 5.2" on-camera monitor and recorder ideal for use on your next set. This monitor supports DCI 4K HDMI footage and can even record ProRes RAW up to 8K with compatible cameras. The Ninja Ultra retains the same form factor as its predecessors to be compatible with most Atomos monitor accessories for easy integration with your preexisting equipment.

Key Specs
Display Size
5.2" / 13.2 cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
Yes, Hybrid Log Gamma
Video I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
Media/Memory Card Slot
No
Video Format
HDMI (8/10/16-Bit 4:2:2)
8K Raw: 30
6K Raw: 60
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Phantom Power
No
Built-In Battery
No
Battery Type
1x L-Series
Power Consumption
30 W
Mounting
1x ARRI Anti-Twist 1/4"-20
2x 3/8"-16 Female
Display
Panel Type
IPS-Type LCD
Display Size
5.2" / 13.2 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Touchscreen
Yes
Maximum Brightness
1000 nits / cd/m2
Color Support
1.07 Billion Colors (8-Bit+FRC)
HDR Support
Yes, Hybrid Log Gamma
Pixels Per Inch (ppi)
427 ppi
LUT Support
HDR
Image Controls
Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O
1x HDMI 2.0 Input
1x HDMI 2.0 Output
HDCP Support
No
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Input
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel Input
Other I/O
1x USB-C
Media/Memory Card Slot
No
File System Support
exFAT
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
Yes: iOS Only
App Name: AtomRemote
Format Support
Video Format
HDMI (8/10/16-Bit 4:2:2)
8K Raw: 30
6K Raw: 60
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Gamma Curve
ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Timecode Support
Yes
Recording
Pulldown Conversion
2:2, 3:2
Camera Trigger
HDMI
Pre-Roll Record
Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats
x
DNxHD
DNxHR
ProRes
Maximum Audio Tracks
8
Reference Input
No
Phantom Power
No
Power
Input Power
6.2 to 16.8 VDC
Built-In Battery
No
Battery Type
1x L-Series
Power Consumption
30 W
Mounting
Mounting
1x ARRI Anti-Twist 1/4"-20
2x 3/8"-16 Female
Environmental
Operating Temperature
104°F / 40°C
General
Material of Construction
Aluminum, Plastic
Dimensions
5.9 x 3.6 x 1.2" / 151 x 91.5 x 31 mm
Weight
12.7 oz / 360 g
Packaging Info
Package Weight
1.715 lb
Box Dimensions (LxWxH)
7.5 x 6.1 x 3.3"

What's in the Box:
  • Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor
  • Battery Eliminator
  • USB-C PD to 2.1mm DC Power Cable
  • Limited 1-Year Manufacturer Warranty
  • Registration Extension: 2-Year
